| Brand Name : | LIN QUAN |
| Model Number : | SLQ-80A |
| Certification : | ISO9001,CE |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 30 set/sets per month |
| Delivery Time : | 30-90days |

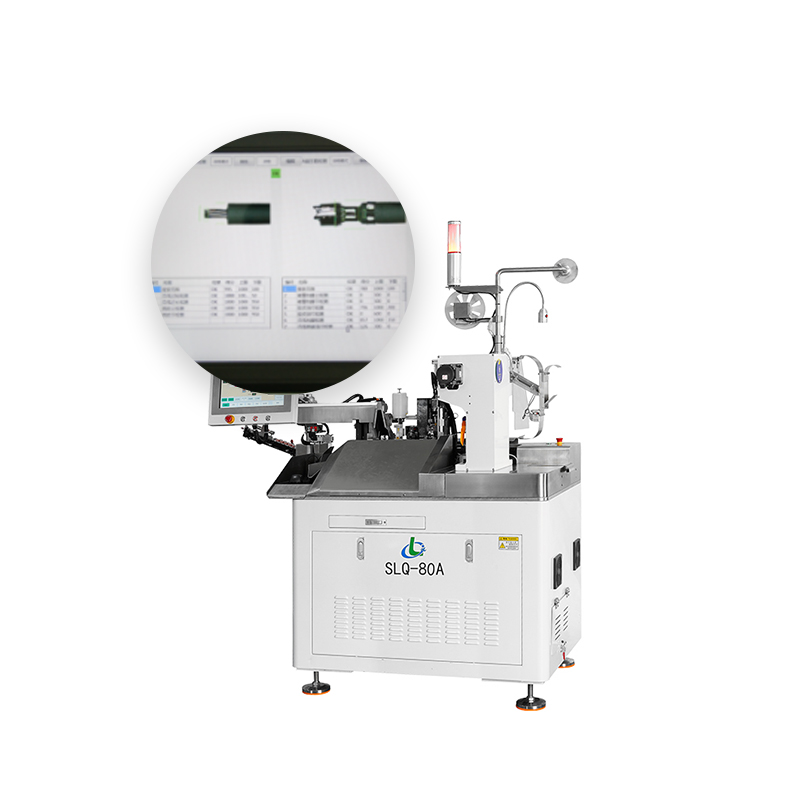

Both-end stripping one end soldering tin automatic crimping machine for shot and fine wire
Equipment Function

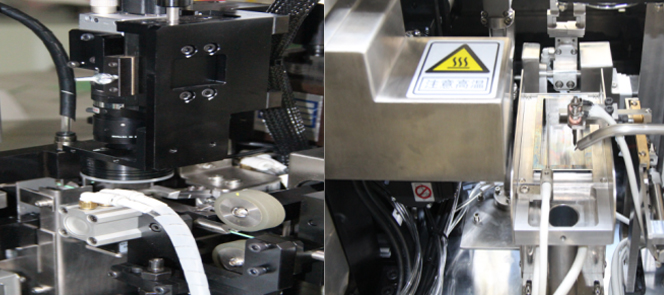

1. With wire twisting, soldering, fluxing and tinning function
2. Visual inspection at A end
3. Pressure detection at A end
4. Adjust the crimping height on a touchscreen
5. High speed, the maximum can reach 2800pcs/hr
Technical Parameters
| Machine Function | wire measuring, cutting, both ends striping, half Stripping, single-stop soldering tin (twisting, with soldering fluid), single-end crimping, Stripping length/penetration depth (crimping sinking buffer shape), terminal vertical transport tool, pre-feeding the entire line function |
| Capacity | One-end crimping, One-end soldering 2800pcs/H |
| Drive Mode | Mitsubishi SERVO Drive, IPC |
| Wire Size | AWG30-AWG14 |
| Mould Assembly Type | Assemble AS40, AS42, AE30( Customized Acceptable) |
| Wire Cutting Length | 30-9999mm |
| Cutting Precision | ±0.5mm |
| Stripping Length | 1.0-15.0mm |
| Penetration Depth | MAX 3mm |
| Crimping Capacity | 2 TON servo motor one set mute specifications |
| Detection Device | Air pressure decline, Wire existence, Wire overload, terminal existence terminal overload, stripping images detection, terminal images detection, crimping force detection |
| Power Source | Single-phase/220V/50Hz |
| Power | 3.5KW |
| Compressed Air | 0.5Mpa about 140NL/Min |
| Equipment Size | L1480*W950*H1780mm |
| Weight | 550KG |
Feature Of Wire Crimping Machine
1: This is a multi-functional terminal crimping machine, including wire trimming, wire stripping, single-head crimping terminals, and double-head crimping terminals
2: Advanced software and English color LCD touch screen, easy to operate. All parameters can be set directly on our machine
3: Strong, durable, stable, efficient and energy-saving. The raw material of this machine is heat treated and hard anodized
4: Adopt double wire feeding motors to avoid long wire feeding and hurt people
6: The crimping part adopts a silent terminal machine, which has low noise and uniform force. Can be equipped with horizontal, vertical and flag
FAQ
Q: Are you a manufacturer or trading company?
A: We are the professional manufacturer of the Wire Crimping Machine
Q: Can I have my LOGO on my products?
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 2-10 working days, depend on product you order.
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
