ODM Double Head Terminal Crimping Applicator Waterproof Connector Crimping Inserting Machine

Flexible space for the auto-delivering machine.
Alarming while the loading plate storage is full.
Hanging the loading plate on the hind-side of the automatic inserting machine.
The delivering machine can serve multiple inserting machine (changing partial component

depends on the type of water proof plug).
Saving costs and spaces.

Technical Parameters

Seal Station

(STA201)

Max 6 seal stations configuration.
Latest smaller, optimized module design for versatile machine configuration.

Innovative centralized seal feeding technology, efficiency and capital investment of sealing to wire have been significantly optimized.
Centralized pre-feeding module S201 makes maximum 4 seal applicators A201 together with maximum 8 magazines work synchronously.

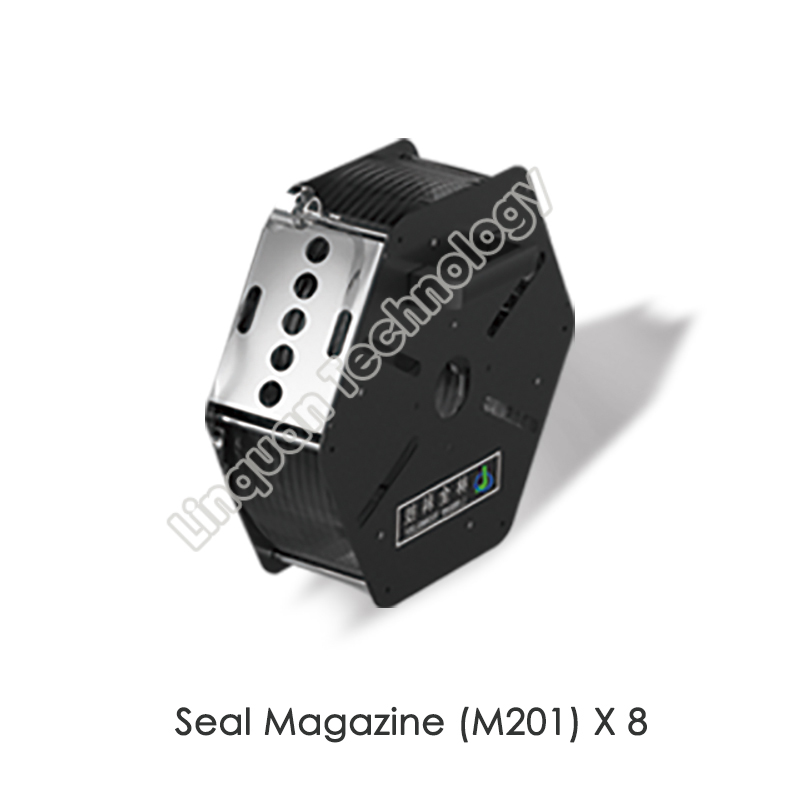

Creative seal magazine model M201 design achieves compact dimensions of seal feeder and change-over time optimization.

Centralized Pre-feeding Module S201

Shenzhen Linquan Technology Co., LTD. founded in 2013, is a comprehensive intelligent manufacturing solution provider integrating automation equipment and industrial software. Headquartered is in Shenzhen and has a production base in Shanghai.

The company focuses on core technologies such as industrial automation, intelligence, digitalization and networking, and its business covers automation equipment and industrial software, providing high-quality and efficient intelligent manufacturing solutions for customers in new energy, automotive electronics and other industries.

Linquan technology has great insights in industry transformation and upgrading demand, highly integrates high-end intelligent system and traditional processing equipment to redefine the automotive wiring harness production pattern, and has accumulated a large number of first-class customers around the world in new energy, automotive electronics field. Linquan has launched benchmarking products in intelligent production, on-line testing and intelligent factory overall solution fields. With many successful cases, Linquan aims to help customers build core competitiveness.

Lin Quan can provide custom build equipment & solutions for wire harness processing on:

High voltage cables manufacturing

Low voltage wire harness manufacturing

Automatic crimping machine

Automatic tinning machine

Digital factory & Industry 4.0 (lin quan MES)
