Shenzhen Linquan Technology Co., LTD.———Intelligent Manufacturing Equipment Overall Solution Provider
4 Years
| Ask Lasest Price | |
| Brand Name : | LIN QUAN |
| Model Number : | LOONG-602 |
| Certification : | ISO9001, CE |
| Price : | USD $ 66,000~500,000 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5 machine per month |
| Delivery Time : | 1-3 Months |

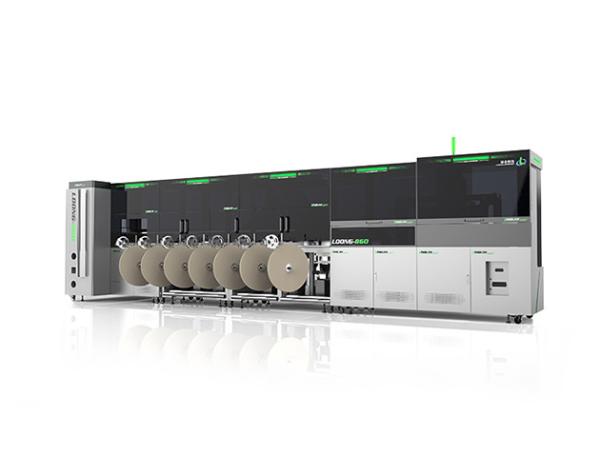

Fully Automatic Vibration Plate Terminal Crimping Machine Different Wires Modular Design
Our advantages
The wire changer holds up to 36 different wires from the entire cross-section range ready for processing.
The different wire types for versatile wire harness production are available on the Loong machines do not need for changeovers. The automatic wire changer provides up to 36 different wires from the entire cross-section range.
This enables the range of wires required in the construction of control cabinets, which to be covered perfectly.
Precisely cutting
Cutting length lesser than 100mm,
error range 0.5mm+
Self-Developed Crimping module
Pass CPA+ pressure stability test CMK can reach to 4.0 or higher,
far higher beyond the industry standard 1.67(Detailed data reports
can be provided)
High stability and accuracy
Adjusting height on touchscreen
100% quality inspection at production line
Self-Developed crimping vision monitor
Insulation barrel errors
One strand out
Low conductor
High insulation
Seal insert errors (seal positions, cut seal, reversed insert,
etc.)
Core Wire Online Inspection System
Detect the Copper Wire Inspection Number and Stripping Length
Inspection and provide alarm.
Self-Developed CFM(Crimping Force Monitor)
Detect the terminal presence, deep or shallow crimping and coreless
crimping and provide alarm.
Self-Developed CCD Visual Inspection
CCD Visual Inspection detect the Coreless crimping, Crimping
without stripping, Deep and shallow crimping, Core wire splay, Half
packing of insulation layer and provide alarm.
Core Wire Online Inspection System
Detect the Copper Wire Inspection Number and Stripping Length
Inspection and provide alarm.
Self-Developed Online Pressure Inspection
Detect the Terminal Presence, Deep or shallow crimping and Coreless
crimping and provide alarm.
Self-Developed Crimping Head
|
|
