Shenzhen Linquan Technology Co., LTD.———Intelligent Manufacturing Equipment Overall Solution Provider
4 Years
| Ask Lasest Price | |
| Brand Name : | LIN QUAN |
| Model Number : | LOONG-860 |
| Certification : | ISO9001, CE |
| Price : | USD $ 66,000~500,000 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5 machine per month |
| Delivery Time : | 1-3 Months |

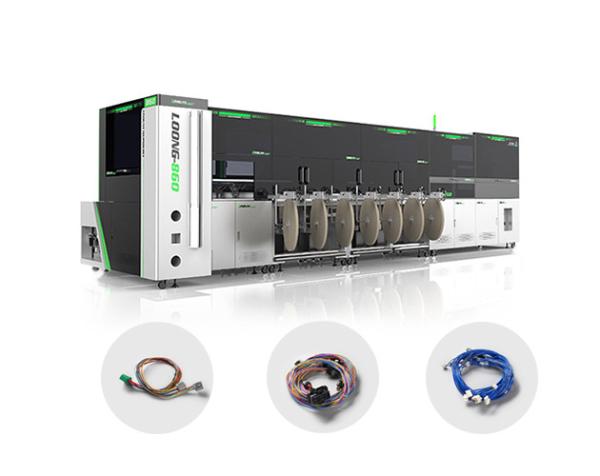

Fully Automatic Double Head Wire Cutting Stripping Terminal Crimping Machine Copper Cable Wire Processing Machine Applic
Technical Data
| Function | Cutting, stripping, both end crimping, both end inserting,adjusting height on touch screen, pull force inspection, discharging defective products while selecting |
| Crimping Capacity | 2.5TON Servo motor six sets (Can be expanded according to customer products) |
| Wire Cross-sections | 0.13 – 2.5 mm² (AWG 26 –14) |
| Feeding Wire Length | 0-9999mm |
| Strip Length | Full strip 15mm, half strip 15mm |
| Wire Changer | Max. 36 wires(difference color) |
| Wire End Storage | Rotary storage unit with a maximum of 30 storage spaces |
| Process Monitoring (integrated) | CCD Terminal Detection Crimping Force Monitoring Insertion Force Monitoring |
| Capacity | 2.5 sec per single-sided loading (Piece output is dependent on wire length and housing/terminal combinations) |
| Block Feed | Linear-carrier housing transferring/ Plate-loop conveying housing
feeding module (According to customer requirements) |
| Connector Housing | 30 kinds of the Housing |
| Electrical Connection | 3 phase/220v/50HZ |
| Power | 10KW |
| Compressed Air | 0.5Map |
About us
Shenzhen Linquan Technology Co., LTD. founded in 2013, is a comprehensive intelligent manufacturing solution provider integrating automation equipment and industrial software. Headquartered is in Shenzhen and has a production base in Shanghai.
The company focuses on core technologies such as industrial automation, intelligence, digitalization and networking, and its business covers automation equipment and industrial software, providing high-quality and efficient intelligent manufacturing solutions for customers in new energy, automotive electronics and other industries.
Linquan technology has great insights in industry transformation and upgrading demand, highly integrates high-end intelligent system and traditional processing equipment to redefine the automotive wiring harness production pattern, and has accumulated a large number of first-class customers around the world in new energy, automotive electronics field. Linquan has launched benchmarking products in intelligent production, on-line testing and intelligent factory overall solution fields. With many successful cases, Linquan aims to help customers build core competitiveness.
Lin Quan can provide custom build equipment & solutions for wire harness processing on:
High voltage cables manufacturing
Low voltage wire harness manufacturing
Automatic crimping machine
Automatic tinning machine
Digital factory & Industry 4.0 (lin quan MES)
|
|
