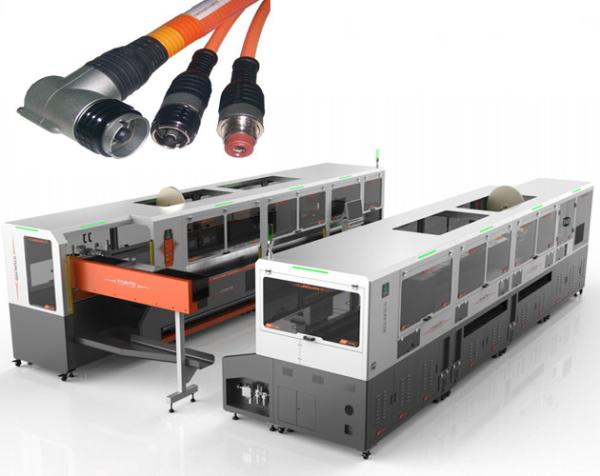

Large Battery Cable Stripping Machine Pneumatic Insulation Peeling
Machine
Equipment Overview
1. It is mainly used for automatic high-voltage cable processing,
which can complete the functions of wire feeding, peeling, weaving
net,
copper close-loop crimping, inner core peeling, waterproof plug,
terminal crimping, sheath and so on.
2, The whole machine adopts PLC bus control communication and full
servo power system, which guarantees stable performance.
3,Touch screen operation. All processing parameters can be saved
and production content can be edited and sent upon request.
4, With imported servo motor and CCD visual detection function, it
gives you a real-time monitoring of the process quality to ensure
product
yield.
5, The machine adopts high precision servo motor and PM-01 pressure
management system, high precision and strong stability, real-time
monitoring of the process.
Technical Parameters
| Function | Fixed length cutting at both terminals, stripping, double-terminal crimping, double-terminal inserting,Waterproof plug inserting, adjust height on touch screen, drawing force inspection, discharge defective products while selecting | Capacity | 18 sec per single-sided loading (Piece output is dependent on wire length and housing/terminal combinations) |
| Crimping Capacity | 10 tons and15 Tons Servo motor with mute specification (Customized according to the requirements of products) | Block Feed | Linear-carrier housing transferring/ Plate-loop conveying housing
feeding module (According to customer requirements) |
| Wire Cross-sections | 2.5 – 16 mm² (AWG 14 – 5) | Process Monitoring (integrated) | CCD Terminal Detection Crimping Force Monitoring Insertion Force Monitoring |
| Feeding Wire Length | 600-9999mm | Electrical Connection | 3 phase/380v/50HZ(machine comes with a transformer) |
| Outer Skin Cutting | 0-60mm, stripping precision ±0.5mm can be full stripping and half stripping; The cutting precision is 0.05mm | Power | 25KW |
| Laser stripping aluminum foil | 3-50mm, the residual size of one circle of aluminum foil is less than the thickness of the outer insulation skin, the residual size of sharp corner is less than or equal to 4.5mm, and the cutting accuracy is ±1mm, which does not hurt the woven net and insulation skin | Compressed Air | 0.5-0.7Map |
| Screening Can Cutting | 5-55mm, cutting accuracy ±0.4mm | Optional | Max.12 PCS Crimping Module ((with programmable crimp height) |
| Screening Can Reversal | 5-20mm | Quality Assurance | Pull force Height Crimp-height Measurement Seal Module RXM Linquan MES System Laser Inkjet Print Tinning Twisting Stranded Wire |
| Inner Skin Cutting | 0-55mm, stripping precision ±0.5mm can be full stripping and half stripping; The cutting precision ±0.05mm |
The KYLIN series in particular designed for high voltage Harness
manufacturing. Can produce varieties of high voltage harnesses of
various
tiers of complexity.
It has the functions of both-end measuring reducing, both-end
striping, both-end crimping, internal and outer layer cutting,
screening can cutting, screening can reversal, both-end Insertion
and so on. lessen production time considerably.
These machines make it workable to manufacture a range of high
voltage harnesses. significantly saving labour prices.
Precision transmission and alignment
Automated inkjet printers mark the wires
Cutting Precision
Self-Developed Crimping Head
Self-Developed CCD Visual Inspection
Core Wire Online Inspection System
Self-Developed Online Pressure Inspection
Magnetic Levitation Linear Motor
Untwisting of the wires
Versatile seal insertion
Special adjustment device for final harness
Processing samples
|
|
