Multifunctional Auto Stripping And Crimping Machine Both End 3 Phase
Description Of Wire Crimping Machine
Multifunctional automatic terminal machine that can cut, strip and crimp terminals.
This machine is equipped with two ultra-quiet terminal machines and wire stripping devices, which can strip two terminals at the same time and press the two terminals together, which is more efficient.
The feeding accuracy is small, the wire stripping will not damage the core wire, the operation is stable, and the defective rate is low.
Equipment Function
1. Double camera shot visual inspetion
2. Discharge the defective and non crimping one at A end
3. Pressure detection function at both A and B end
4. Discharge the defective ones and then fool-proof clipping
5. Adjust the crimping height on touchscreen
6. The maximum speed can reach to 3500pcs/H
Technical Parameters
| Mechine Function | Both end measuring and cutting, Both ends(striping, semi-striping, crimping)terminal vertical delivery device pre-feeding the whole line function, Can increase the function of piercing waterproof plug and spraying code by wire |
| Capacity | Both-end crimping,Pressing wire length is different, speed is slightly different(If the length is 1M efficiency≥4000 roots, 1.5M efficiency≥3800 roots, 2M efficiency≥3500 roots) |
| Drive Mode | Mitsubishi SERVO MOTOR, Drive, IPC |
| Wire Size | AWG26-AWG12 |
| Mould Assembly Type | Assemble AS40, AS42, AE30( Customized Acceptable) |
| Wire Cutting Length | 50-99999mm |
| Cutting Precision | Cutting length＜100mm, Tolerance 0.5mm+(Setup cutting length*0.002) Cutting length＞100mm, Tolerance 1.0mm(Setup cutting length*0.002) |
| Stripping Length | Tin thickness 1.0-15.0mm |
| Penetraction Depth | MAX 3mm |
| Crimping Capacity | 3 TON servo motor two sets mute specifications |
| Detection Device | Air pressure decline, Wire exists or not, Wire overload, Terminal exists or not, Terminal overload, Stripping images detection, Terminal images detection, Pressure detection, Tension testing |
| Power Source | 3 phase/220V/50Hz |
| Power | 7.5KW |
| Compressed Air | 0.5Mpa about 170NL/Min(please use clean and dry air) |
| Equipment Size | L5761*W1624*H1975mm(thrusts are not contained) |
| Weight | 1000KG |
Feature Of Wire Crimping Machine
1: This is a multi-functional terminal crimping machine, including wire trimming, wire stripping, single-head crimping terminals, and double-head crimping terminals
2: Advanced software and English color LCD touch screen, easy to operate. All parameters can be set directly on our machine
3: Strong, durable, stable, efficient and energy-saving. The raw material of this machine is heat treated and hard anodized
4: Adopt double wire feeding motors to avoid long wire feeding and hurt people
Cutting Precision
It is based on a capacitive measuring principle, is integrated in the blade holder and can be operated using any standard stripping blade.
The sensitivity of the monitoring can be configured using setting parameters. Defective wire ends are detected automatically and rejected
Cutting length shorter than 100mm, error range 0.5mm+
Self-Developed Crimping Head
Pass CPA+ pressure stability test CMK can reach to 4.0 or higher,far higher than the industry standard 1.6(Detailed data reports can be provided).
Higher stability and accuracy.
Adjust height on touchscreen.
The crimping machine head can be added according to customers need.
The equipment is modular and can be matched according to product
types.
Self-Developed CCD Visual Inspection
CCD Visual Inspection detect the Coreless crimping, Crimping
without stripping, Deep and shallow crimping, Core wire splay,
Half packing of insulation layer and provide alarm.

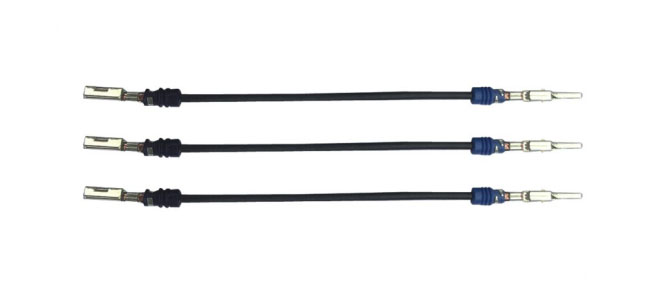

Processing samples
|
|
