| Brand Name : | LINQUAN |
| Model Number : | ZE-608 |
| Certification : | ISO9001, CE |
| Price : | USD $66,000~500,000 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5 machine/month |
| Delivery Time : | 1-3 months |
Automatic Terminal Double Both-End Insertion And Crimping Machine Wire Feeding Machine
Wide variety with up to 20 wire types
The different wire types for versatile wire
harness production are available on the
Loong machines without the need for
changeovers. The automatic wire changer
provides up to 20 different wires from the
entire cross-section range. This enables the
range of wires required in the construction of control
cabinets,which to be covered perfectly.
Automated inkjet printers mark the wires
The marked wires are picked up by a shuttle system and guided in
loops to the processing machines.
Continuous data flow and traceability Production data can be sent
directly to the machine via a network. The
quality data from the production process is saved for each wire harness and traceability is guaranteed at all times.
Cutting Precision
It is based on a capacitive measuring principle, is integrated in the blade holder and can be operated using any standard
stripping blade.
The sensitivity of the monitoring can be configured using setting
parameters. Defective wire ends are detected automatically
and rejected
Cutting length shorter than 100mm, error range 0.5mm+

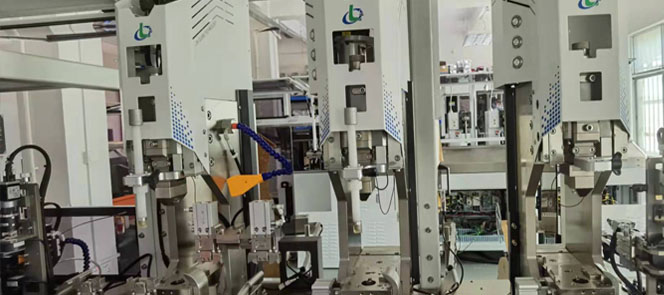

Self-Developed Crimping Head
Pass CPA+ pressure stability test CMK can reach to 4.0 or
higher,far higher than the industry standard 1.6(Detailed data
reports can be provided)
Higher stability and accuracy
Adjust height on touchscreen
The crimping machine head can be added according to customers need.
The equipment is modular and can be matched according to product
types.
3 or 12 modules can be selected, as required.
Self-Developed CCD Visual Inspection
CCD Visual Inspection detect the Coreless crimping, Crimping
without stripping, Deep and shallow crimping, Core wire
splay, Half packing of insulation layer and provide alarm.
Core Wire Online Inspection System
Detect the Copper Wire Inspection Number and Stripping Length
Inspection and provide alarm.
Self-Developed Online Pressure Inspection
Detect the Terminal Presence, Deep or shallow crimping and Coreless
crimping and provide alarm.
Untwisting of the wires
Unwound wires are always twisted. A special
untwisting module removes this twist. The
wires are then 100% straight, which is crucial
for the subsequent fully automatic insertion.
No limit on the housing type, different kinds of housing can be inserted at the same time.
High flexibility and simple operation
Processing Samples
|
|
